Introduction

PVDF Aluminum Extrusion Curtain Wall Profile is an aluminum alloy profile treated with polyvinylidene fluoride (PVDF) coating, mainly used for curtain wall systems on building facades.

Specification

Products Names	Aluminum glass curtain wall
Profiles	6063-T5 thermal break Aluminum profile
Thickness	2.0-3.0mm aluminum profile
Color & Size	Customized

Customizable Options

Cross-Section Design
Profiles can be customized based on glass panel size and installation method, including single-chamber, multi-chamber, or thermal break designs.
Grooves can be designed for glass clamps and installation of sealing strips.
Reinforcement ribs or connection slots can be added to support structural requirements.

Profile Dimensions
Thickness: 2.0–3.0mm
Custom lengths according to curtain wall units or glass panel size
Width, depth, and slot dimensions can be designed according to drawings

Surface Treatment
PVDF coating, suitable for UV exposure and outdoor environments
Custom colors available: White, silver, gray, black, or project-specific colors
Surface finish options: Matte or gloss

Secondary Processing
Hole drilling for fasteners or glass clamps
Flange or slot machining for assembly with glass, aluminum, or structural components
Optional pre-installation of glass clamps or sealing strips

Application industries

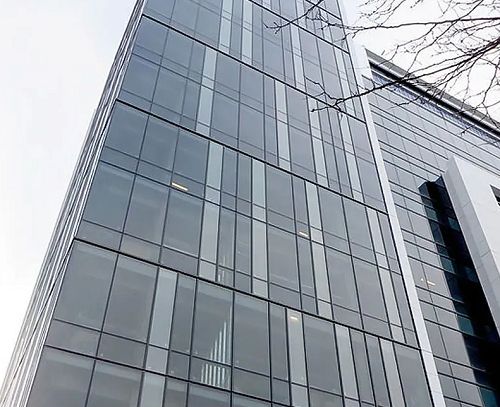

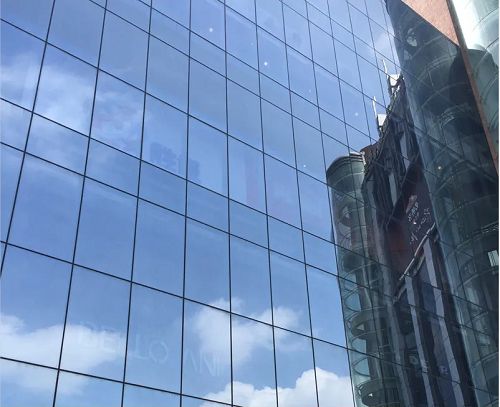

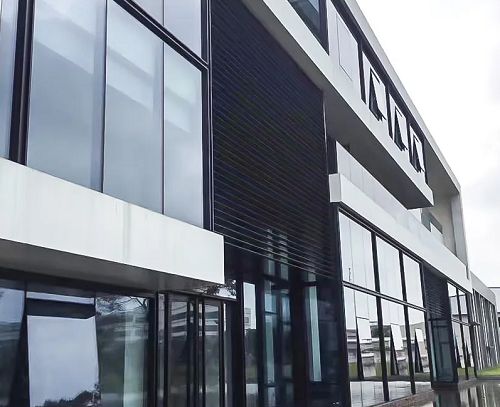

Commercial Buildings
Office building curtain wall frames
Shopping mall glass facade support structures
Hotel exterior glass units

Public Facilities
Curtains walls at airports, railway stations, and exhibition centers
Glass enclosures at hospitals or schools

High-Rise Residential Buildings
Balcony or exterior glass curtain walls
Decorative glass facade structures

Custom Engineering Projects
Large-scale project-specific curtain wall profiles
Export project profile supply
Profiles with special cross-section or slot designs per engineering drawings

FAQ

Q: How to determine the profile cross-section and thickness?

A: Select based on glass panel size, weight, and wind load.
Typical thickness is 2.0–3.0mm. Width and slot design should match glass unit dimensions and installation method.

Q: Can the PVDF coating color be customized?

A: Yes, colors can be specified according to architectural design.
Surface finish can be matte or gloss. PVDF coatings are formulated for long-term outdoor exposure.

Q: How should profile length be selected?

A: Profiles can be cut according to curtain wall units or glass panel lengths to reduce on-site splicing and improve installation accuracy.

Q: What should be considered during installation and secondary processing?

A: Slots and holes must match clamps and sealing strips.
Long profiles should be supported during transport and installation to avoid deformation.
Flange or reinforcement rib positions must meet structural load requirements.

Q: Is pre-installation of glass clamps or sealing strips possible?

A: Yes, pre-installation can be done according to project requirements.

Q: What are the maintenance requirements?

A: Clean surfaces with neutral detergent.
Avoid acidic, alkaline, or corrosive cleaners.
Periodically inspect clamps and sealing strips for secure attachment.
