Introduction

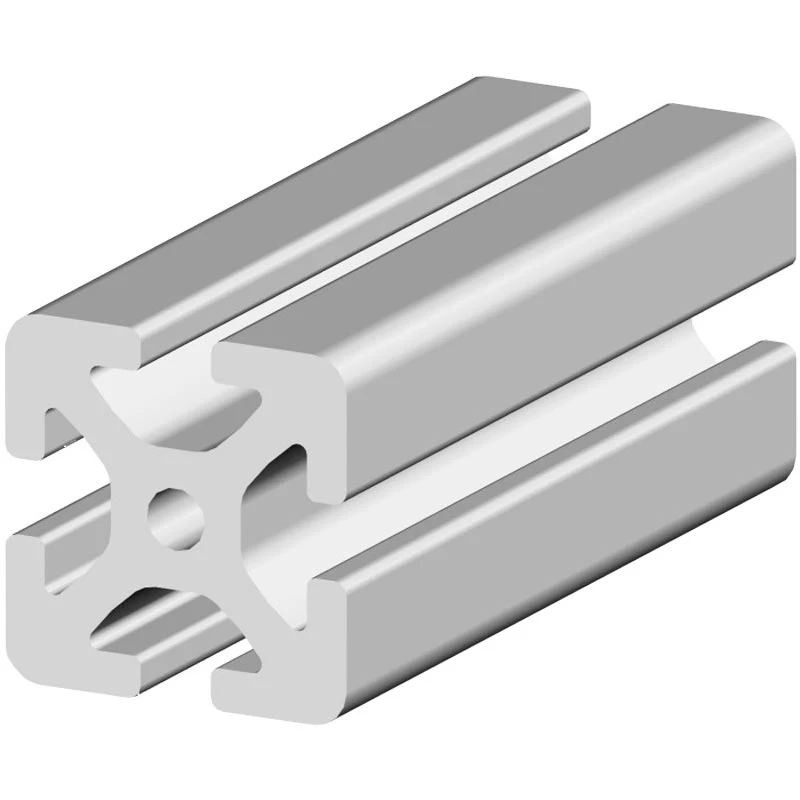

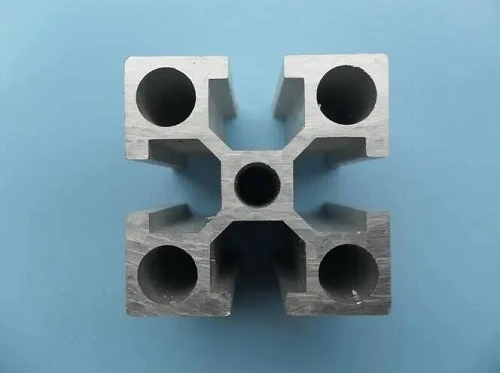

Aluminum extruded tube is a hollow aluminum tube produced by hot extrusion process, which is widely used in structural support, vehicle frame, guardrail, radiator, architectural decoration and other fields.

Specification

Product Name	Industrial aluminium profile, aluminium extrusion
Material	T3 - T8 6063 aluminium alloy etc.
Surface treatment	Can be customized, such as Mill finished, Anodized, 4. Electroplating, Powder coated, Painted.
Aluminium Profile Size	15/20/30/40/45/50/60/80/90/100/160 series etc.
V Slot, T Slot size	6mm, 8mm, 10mm
Color	Black, silver and grey. Can be customized
Surface	Mill finish, Anodizeding, Sand Blasting, Powder coating, etc.
Deep processing	Cutting Size, Drilling holes, Adding mounting bracket, Flanged side panels, etc.
Application of Aluminium Profile	Building, Industrial, Machinery, Automation parts
Shipping Term	FOB, C&F or others can be discussed.

Customizable Options

Alloy and Temper
6063, 6061, and other aluminum alloys
Temper: T3–T8

Cross Section and Dimensions
Series width: 15, 20, 30, 40, 45, 50, 60, 80, 90, 100, 160
V-slot and T-slot sizes: 6mm, 8mm, 10mm
Wall thickness: 0.4–50mm
Custom cross-section designs available according to drawings

Surface Treatment
Mill finish
Anodizing
Powder coating
Wood grain
Electrophoresis coating
Polished or brushed
Custom colors available: Black, silver, gray, or as specified

Secondary Processing
Cutting to specified lengths
Drilling and hole processing
Adding mounting brackets
Flanged side panels
Optional pre-assembly or additional machining according to project requirements

Packaging and Transportation
Standard or customized packaging
Shipping terms: FOB, C&F, or other agreed methods

Application industries

Building and Construction
Typical scenarios include curtain wall frameworks, window and door frames, railings, stairs, and decorative supports

Industrial Manufacturing
Typical scenarios include machinery support frames, industrial frameworks, guide rails, and tubular structural components

Automation and Mechanical Components
Typical scenarios include automation line frames, industrial workstation structures, and mechanical tubular parts

OEM and Custom Projects
Typical scenarios include mass-produced industrial components, project-specific custom profiles, and export-oriented supply

FAQ

Q: How to select the appropriate cross-section and series?

A: Selection should be based on load, span, and functional requirements. Larger spans or higher loads require wider or multi-chamber profiles. V-slot or T-slot dimensions must match the hardware or connectors.

Q: How to determine the wall thickness?

A: Wall thickness should consider load conditions, intended use, and processing requirements. Light-duty applications can use 0.4–2mm, while structural or industrial applications may require thicker walls, up to 50mm.

Q: Can the tube be customized in length and cross-section?

A: Yes. Tubes can be manufactured according to customer drawings and cut to specified lengths to reduce on-site processing.

Q: How to choose the surface treatment?

A: Surface treatment should match the environment and functional requirements. Mill finish or powder coating is suitable for indoor dry conditions. Anodizing or electrophoresis is recommended for humid or outdoor environments. Wood grain or paint can be applied for decorative purposes.

Q: What should be considered during processing and installation?

A: Avoid excessive bending or impact during processing to prevent deformation. V-slot and T-slot hardware should fit the groove properly to prevent loosening. For long spans, intermediate support points are recommended to control deflection.

Q: How are large orders delivered and transported?

A: Production can be scheduled according to project volume. Packaging can be standard or customized. Long tubes require proper support to prevent deformation during transport.

Q: How should the product be maintained?

A: Routine cleaning with neutral detergents is recommended. Avoid acidic or alkaline cleaners to preserve surface finish. Properly treated surfaces can maintain color and appearance over long-term indoor use.
